[웹디자인기능사 실기 독학] 해운대 빛축제 C-1 연습 / 코드

[웹디자인기능사 실기 독학]

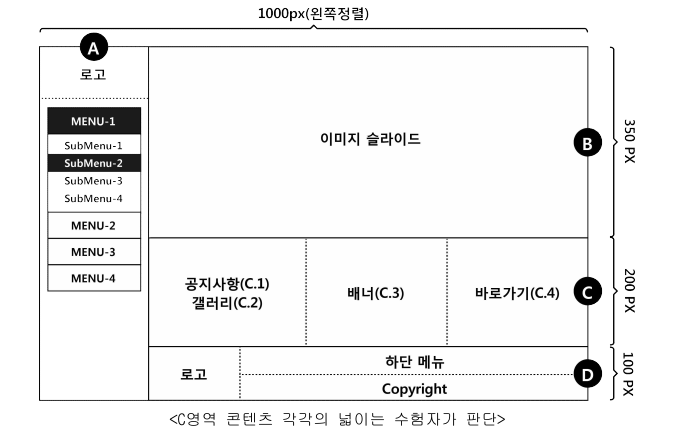

0. 이전 유형(A, B)과 다른점

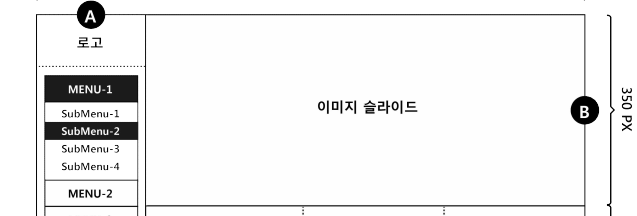

✅ 헤더에 세로 메뉴 바로 구성됨







1. 헤더

1-1. 메뉴 바 mark-up

<header class="cf">
    <h1>
        <a href="#"><img src="images/logo.png" alt="해운대 빛축제"></a>
    </h1>
    <nav>
        <ul class="gnb cf">
            <li><a href="#">이용안내</a>
                <ul class="sub">
                    <li><a href="#">이용방법</a></li>
                    <li><a href="#">이용시간</a></li>
                    <li><a href="#">이용요금</a></li>
                </ul>
            </li>
            <li><a href="#">이벤트정보</a>
                <ul class="sub">
                    <li><a href="#">현장이벤트</a></li>
                    <li><a href="#">온라인이벤트</a></li>
                    <li><a href="#">이벤트예약</a></li>
                </ul>
            </li>
            <li><a href="#">프로그램</a>
                <ul class="sub">
                    <li><a href="#">프로그램안내</a></li>
                    <li><a href="#">온라인예약</a></li>
                    <li><a href="#">단체상담예약</a></li>
                </ul>
            </li>
            <li><a href="#">고객센터</a>
                <ul class="sub">
                    <li><a href="#">공지사항</a></li>
                    <li><a href="#">자주묻는질문</a></li>
                    <li><a href="#">자료실</a></li>
                </ul>
            </li>
        </ul>
    </nav>
</header>



1-2. 메뉴 바 css

.wrap{
    width: 1000px;
    display: flex;
}
header{
    width: 200px;
    height: 650px;
    text-align: center;
    position: relative;
    z-index: 10;
}
header h1{
    width: 200px;
    margin-top: 30px;
}
header nav{
    width: 200px;
    height: 550px;
    margin-top: 20px;
}
header nav a{
    height: 40px;
    line-height: 40px;
    display: block;
    font-size: 18px;
}

/*메인 메뉴*/
header .gnb>li{
    width: 100%;
    background: #eee;
    font-weight: bold;
}
header .gnb>li:hover{
    background: #f05330;
    color: #ffffff;
}
/*서브메뉴*/
header .sub{
    height: 120px;
    display: none;
    background: #ffffff;
}
header .sub li:hover{
    background: #f05330;
    color: #ffffff;
}



.wrap{
    width: 1000px;
    display: flex;
}
header{
    width: 200px;
    height: 650px;
    text-align: center;
    position: relative;
    z-index: 10;
}

✅ wrap 은 전체 길이가 1000px

✅ display: flex; 로 콘텐츠가 옆으로 붙도록 하기. → display: flex 가 있고, flex-wrap 속성을 따로 지정해주지 않으면 기본값은 nowrap 이다. 따라서 정렬된 요소들의 너비는 부모의 크기에 맞게 축소됨.(옆으로 나열)



header nav a{
    height: 40px;
    line-height: 40px;
    display: block;
    font-size: 18px;
}

✅ nav 의 a 에 높이 40px 을 지정해준다.



header .sub{
    height: 120px;
    display: none;
    background: #ffffff;
}

✅ 서브메뉴의 높이는 120px.

✅ 서브메뉴는 안 보이게 display: none;

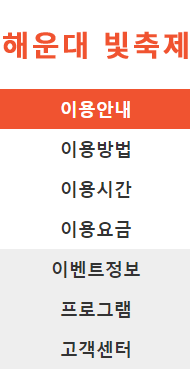

1-3. 메뉴 바 jquery

$('header .gnb>li').mouseenter(function(){
    $(this).find('.sub').stop().slideDown('450');
});
$('header .gnb>li').mouseleave(function(){
    $(this).find('.sub').stop().slideUp('450');
});

✅ mouseover 가 아닌 mouseenter 사용

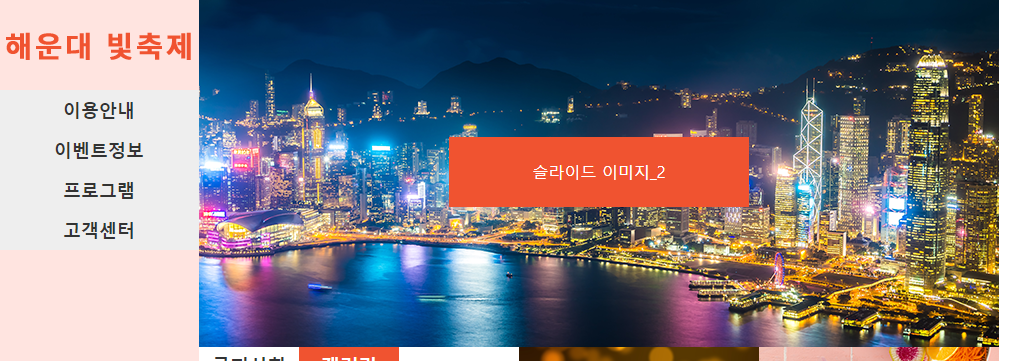

2. 슬라이드 영역

2-1. 슬라이드 mark-up

<section id="section_right">
    <div id="slide">
        <ul class="slide_list">
            <li>
                <a href="#"><img src="images/slide1.png" alt="slide_img1"></a>
                <p>슬라이드 이미지_1</p>
            </li>
            <li>
                <a href="#"><img src="images/slide2.png" alt="slide_img2"></a>
                <p>슬라이드 이미지_2</p>
            </li>
            <li>
                <a href="#"><img src="images/slide3.png" alt="slide_img3"></a>
                <p>슬라이드 이미지_3</p>
            </li>
        </ul>
    </div>





2-2. 슬라이드 css

#slide{
    width: 800px;
    height: 350px;
    overflow: hidden;
}
.slide_list{
    width: 800px;
    height: 350px;
    position: relative;
}
.slide_list li{
    position: relative;
}
.slide_list li p{
    width: 300px;
    height: 70px;
    line-height: 70px;
    text-align: center;
    background: #f05330;
    color: #ffffff;
    position: absolute;
    top: 50%;
    left: 50%;
    transform: translate(-50%, -50%);
    z-index: 9;
}

✅ 너비 800px 높이 350px



2-3. 슬라이드 jquery

let indexNum = 0;
setInterval(function(){
    if(indexNum<2){
        indexNum++
    }else{
        indexNum=0;
    }
    $('.slide_list li').eq(indexNum).fadeIn();
    $('.slide_list li').eq(indexNum).siblings().fadeOut();
}, 3000);

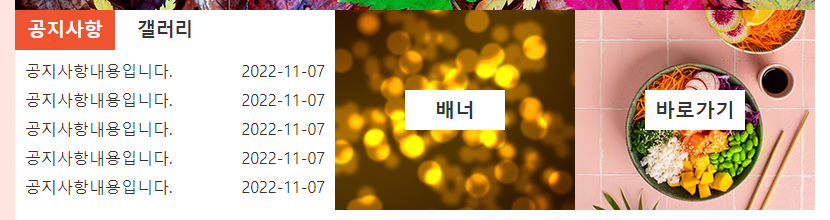

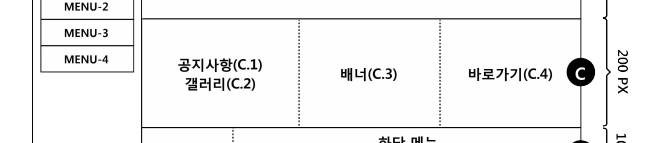

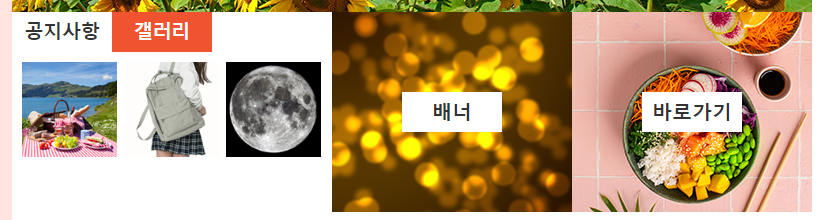

3. 콘텐츠 영역

3-1. 콘텐츠 영역 mark-up

<section id="contents" class="cf">
    <div class="con_box notice_gall">
        <div class="tab_tit">
            <h3 class="on"><a href="#">공지사항</a></h3>
            <h3 class="button2"><a href="#">갤러리</a></h3>
        </div>
        <div class="tab_con">
            <ul class="notice_list block">
                <li><a href="#">공지사항내용입니다.<span>2022-11-07</span></a></li>
                <li><a href="#">공지사항내용입니다.<span>2022-11-07</span></a></li>
                <li><a href="#">공지사항내용입니다.<span>2022-11-07</span></a></li>
                <li><a href="#">공지사항내용입니다.<span>2022-11-07</span></a></li>
                <li><a href="#">공지사항내용입니다.<span>2022-11-07</span></a></li>
            </ul>
            <ul class="gal_list">
                <li><a href="#"><img src="images/gall1.png" alt="갤러리이미지"></a></li>
                <li><a href="#"><img src="images/gall2.png" alt="갤러리이미지"></a></li>
                <li><a href="#"><img src="images/gall3.png" alt="갤러리이미지"></a></li>
            </ul>
        </div>
    </div>
    <div class="con_box banner">
        <h2><a href="#">배너</a></h2>
        <h3><a href="#"><img src="images/banner.png" alt="배너"></a></h3>
    </div>
    <div class="con_box site">
        <h2><a href="#">바로가기</a></h2>
        <h3><a href="#"><img src="images/site.png" alt="site"></a></h3>
    </div>
</section>



3-2. 콘텐츠 영역 css

#contents{
    width: 800px;
    height: 200px;
}
.con_box{
    height: 200px;
    float: left;
    position: relative;
}
.notice_gall{
    width: 40%;
}
.banner, .site{
    width: 30%;
}
.notice_gall a{
    width: 100%;
    display: block;
}
.notice_gall h3, .notice_gall ul{
    position: absolute;
}
.notice_gall h3{
    width: 100px;
    height: 40px;
    line-height: 40px;
    text-align: center;
    cursor: pointer;
}
.notice_gall h3.button2{
    left: 100px;
}
.notice_gall h3.on{
    background-color: #f05330;
    color: #ffffff;
}
.notice_gall ul{
    width: 100%;
    height: 160px;
    top: 40px;
    left: 0;
    display: none;
    padding: 10px;
}
.notice_gall ul.block{
    display: block;
}
.notice_list li{
    padding-bottom: 8px;
}
.notice_list li a:hover{
    font-weight: bold;
}
.notice_list li a span{
    position: absolute;
    right: 10px;
}
.gal_list li{
    width: 95px;
    float: left;
    margin-right: 7px;
}
.gal_list li:last-child{
    margin-right: 0;
}
.gal_list li img{
    width: 100%;
}
.site, .banner{
    position: relative;
}
.site h2, .banner h2{
    width: 100px;
    height: 40px;
    line-height: 40px;
    position: absolute;
    top: 50%;
    left: 50%;
    transform: translate(-50%, -50%);
    background: #ffffff;
    font-size: 20px;
    text-align: center;
}
.site h3, .banner h3{
    width: 100%;
    font-weight: nomal;
}





3-3. 콘텐츠 영역 jquery

$('.notice_gall h3').click(function(){
    let index = $(this).index();
    $(this).addClass('on').siblings().removeClass('on');
    $(this).parents().next().children().eq(index).addClass('block').siblings().removeClass('block');
});









4. 푸터





4-1. 푸터 mark-up

<footer>
    <a href="#" class="footer_logo"><img src="images/logo2.png" alt="해운대 빛축제"></a>
    <div class="footer_right">
        <ul class="footer_menu">
            <li><a href="#">전체서비스</a></li>
            <li><a href="#">이용약관</a></li>
            <li><a href="#">개인정보처리방침</a></li>
            <li><a href="#">고객센터</a></li>
        </ul>
        <p>Copyright All rights reserved.</p>
    </div>
</footer>



4-2. 푸터 css

footer{
    width: 800px;
    height: 100px;
}
footer a.footer_logo{
    width: 200px;
    float: left;
    margin-top: 30px;
}
footer .footer_right{
    width: 600px;
    height: 100px;
    float: left;
    text-align: center;
    font-size: 14px;
    padding: 20px 0;
}
footer .footer_menu{
    width: 400px;
    height: 30px;
    line-height: 30px;
    display: flex;
    justify-content: space-between;
    margin: 0 auto;
}
footer p{
    width: 600px;
    height: 30px;
    line-height: 30px;
    float: left;
    text-align: center;
}





5. 모달창

5-1. 모달창 mark-up

<div class="modal_box">
    <div class="modal">
        <h2>해운대 빛축제에 오신걸 환영합니다.</h2>
        <p>Lorem ipsum dolor sit amet consectetur adipisicing elit. Mollitia iste nisi voluptas itaque modi consequatur vero aperiam alias inventore maxime. Expedita quibusdam repellat minus. Amet voluptas a accusamus eaque architecto!
        </p>
        <div class="close_btn">닫기</div>
    </div>
</div>



5-2. 모달창 css

.modal_box{
    width: 100%;
    height: 100%;
    margin: 0;
    position: fixed;
    left: 0;
    top: 0;
    background-color: rgba(0,0,0,0.5);
    z-index: 15;
    display: none;
}
.modal{
    width: 500px;
    height: 300px;
    position: fixed;
    top: 50%;
    left: 50%;
    transform: translate(-50%, -50%);
    background-color: #ffffff;
    padding: 50px;
    display: none;
}
.modal_on{
    display: block;
}
.modal p{
    margin: 20px auto;
    line-height: 1.5;
}
.close_btn{
    width: 80px;
    height: 30px;
    line-height: 30px;
    text-align: center;
    position: absolute;
    bottom: 20px;
    right: 20px;
    cursor: pointer;
    background-color: #f05330;
    color: #ffffff;
}



5-3. 모달창 jquery

$('.notice_list li').eq(0).click(function(){
    $('.modal_box').addClass('modal_on');
    $('.modal').addClass('modal_on');
});
$('.close_btn').click(function(){
    $('.modal_box').removeClass('modal_on');
    $('.modal').removeClass('modal_on');
});

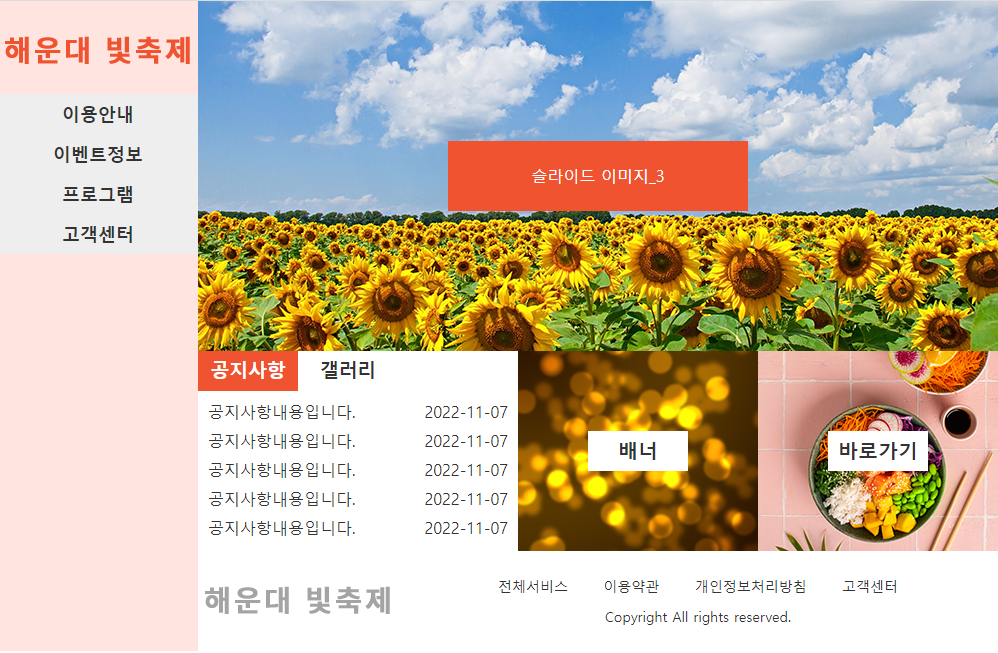

완성 / 이미지 = 프리픽
